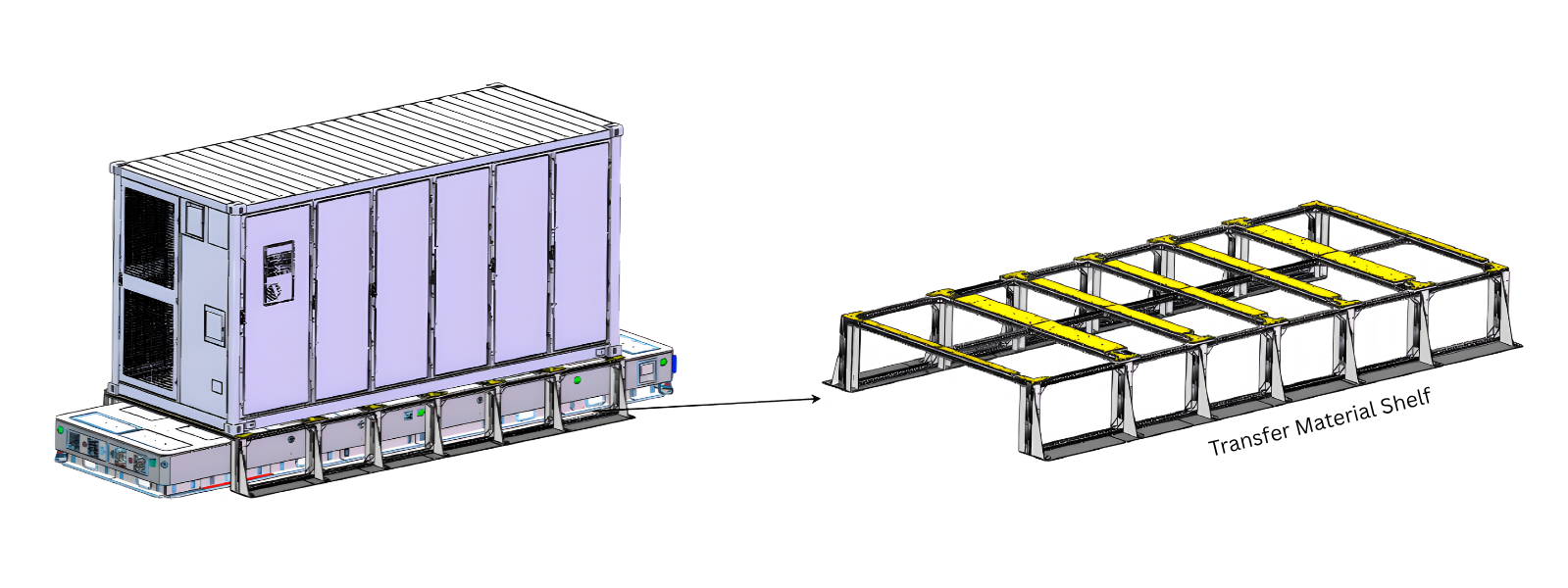

AGV Auto Transportation

No.	Specification	Details
1	Vehicle Size (L×W×H), mm	≤8000 × 2200 × 800mm
2	Navigation Method	QR Code + Laser
3	Control Method	Automatic Operation + Manual Remote Control
4	Rated Load	65000 Kg
5	AGV Dead Weight	20000 Kg
6	Maximum Running Speed, m/min	Speed is adjustable within 0–30 m/min
7	Positioning and Stop Accuracy (navigation and parking)	±10 mm
8	Mode of Movement	Forward, backward, lateral movement, self-rotation
9	Slope Climbing Capability / Ground Flatness	≤3°
10	Working Noise, dB	≤75
11	Communication Method	Wireless AP, Wireless Ethernet
12	Alarm Form	Audio and Visual Alarms
13	Battery Type	Lithium Battery
14	Battery Capacity	No less than 210Ah 96V
15	Operation Voltage	DC 96V
16	Charging Method	Online automatic charging for 24-hour operation; manual charging also available.
17	Safety Protection System	Non-contact safety anti-collision, buzzer (adjustable 30–60 dB), indicating lamp, dual-circuit emergency stop button
